0:00
okay okay I know loaded thumbnail but
0:02
I'm not kidding there are things you
0:04
need to know about these printers before
0:05
spending money on the wrong one it may
0:08
seem simple on the outset there's the
0:09
Mars 4 and the Mars 4 ultra surely the
0:12
ultra is better than the normal Mars 4
0:15
well it depends on what you want because
0:16
if you want the best print quality then
0:18
out of the box the Mars 4 ultra is not a
0:21
better printer and don't get me started
0:24
on the Mars 4 Max and the Mars 4 DLP
0:26
those are completely different things
0:28
and I recommend you check out the
0:30
reviews of each if you're considering
0:32
them links above and in the description
0:35
today I'm focusing on the direct
0:36
differences between the Mars 4 printers
0:39
which are the direct upgrades to the
0:41
previous Mars 3s so hi I'm Ross and this
0:44
is faux Hammer videos so yeah that's
0:47
true the Mars 4 ultra is not immediately
0:49
better quality but don't fret you can
0:51
make it slightly better quality than the
0:53
bass Mars 4 with one quick tweak you may
0:55
already know what it is because I've
0:57
screamed about it enough but this video
0:59
is is really for those people wondering
1:01
shall I get the Mars 4 or the ultra what
1:04
are the key differences and is that
1:06
worth the extra Outlet so let's talk
1:08

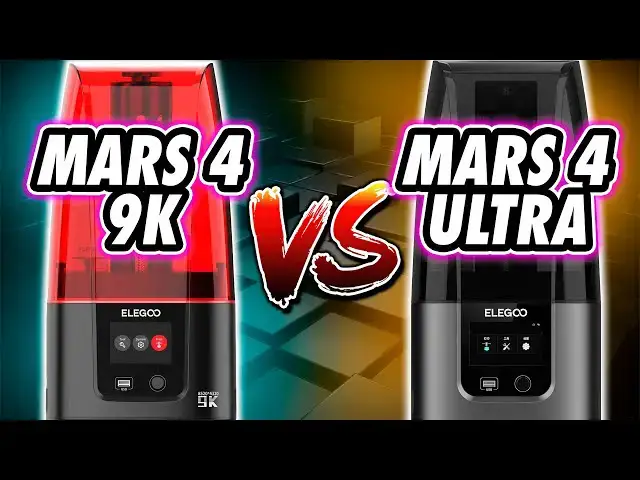

about them both printers are almost
1:10
identical in silhouette the basic Mars
1:13
has a red lid and the ultra comes in
1:15
black but as you look closer you'll see
1:17
that the ultra has a metal chassis
1:19
whilst the other is plastic no benefit
1:21
but it's a bit sexier for your money
1:23
otherwise it's pretty much the same
1:25
externally power and USB ports are in
1:27
the same place on both printers and that
1:29
means that the power's on the back and
1:31
the USB port is on the front thanks elu
1:34
however it's worth noting that with the
1:36
ultra what cheapens the experience
1:38
slightly is that the metal case is not
1:40
flush to the upper body and so you do
1:42
get some slight UV leak during a print
1:45
it's not a big deal but a rubber gasket
1:47
wouldn't have gone a miss here inside
1:49
each printer is what elu is calling a 9k
1:52
screen but 9k isn't a real thing and
1:54
even if it was this isn't it for more
1:57
info on that check out my rant on my
1:59
Mars phone 9k video but what they do
2:02
have are screens with
2:03
8520 pixels on the x-axis and 4,320 on
2:08
the Y AIS in an area of approximately
2:11
153 by 78 mm this means the pixels are
2:15
only 18 microns which as you may know is
2:19
currently the smallest pixel size on the
2:21
market and therefore capable of the
2:23
highest quality LCD print out there
2:26
there's also DLP printers but they are
2:28
far more for print ACC accuracy than
2:30
pixel toxel quality now whilst you would
2:33
expect that each printer provides the
2:35
same quality because it's the same
2:37
screen there's more under the surface on
2:39
each model to consider and I'll come
2:41
back to that in just a sec each printer
2:43
comes with a box of supplies including
2:45
face masks paper filters enough gloves
2:47
to last about a day maybe three prints
2:50
and you also get a plastic scraper and a
2:52
really decent metal scraper and a cheapo
2:55
USB drive that you should replace with a
2:57
sandis one ASAP though with the ultra
2:59
you don't actually need it and I'll come
3:02
back to that too both printers come with
3:04
a USB powered carbon filter that plugs
3:06
into the USB port and these work to
3:08
remove any nasty resin smells though in
3:11
my testing it seems that they do nothing
3:13
to remove voc's when it comes to printer
3:16
operation the main physical difference
3:18
is the leveling mechanism the base model
3:20
has elgu's usual ball joint and I've
3:22
said for ages that these come dislodged
3:24
and are a much weaker mechanism to the
3:26
alternative I know many people have said
3:28
I'm wrong and yeah my experience with
3:31
them has been hit or miss but even elegu
3:33
themselves must agree to a point because
3:35
the ultra comes with a fourpoint bolt
3:37
mechanism and I've never had one of
3:39
these fail when leveled properly and on
3:41
that regard for either printer just
3:43
loosen the bolts however many you've got
3:45
send the bed to the home position then
3:47
hold down on the plate as you tighten
3:49
the bolts and for the ultra do this in
3:51
alternating corners and do it with a
3:53
quarter turn on each bolt at a time
3:55
tightening just one corner fully could
3:57
dislodge the other tighten them all as
3:59
far as you can just not so much that you
4:01
thread the socket and you'll know when
4:03
the Mars 4 ball screw comes loose
4:05
because you'll find that subsequent
4:06
prints just aren't sticking to the bed
4:08
you can relevel it with resin in the vat
4:10
but it's messy so wear gloves and have
4:12
tissue handy but anyway once tight just
4:15
back out to the menu press Z equals 0
4:18
and so many people miss this step and
4:20
it's a big reason for printing fails
4:22
eligo please put this button inside the
4:24
Zed movement menu now you may have
4:26
noticed from the footage that each
4:28
printer has a different UI whilst the
4:30
basic Mars UI has everything you could
4:32
really need it does look a bit Bland and
4:34
outdated by now by competitor standards
4:37
the new UI on the ultra is thanks to the
4:39
whole printer running on Linux OS this
4:41
UI is not only sexier but a bit more
4:44
in-depth too the main feature is that
4:46
you can edit a print settings from the
4:48
UI and whilst this may seem useless try
4:51
and imagine you're just dialing in a
4:52
printer's exposure time there's no need
4:54
to go and reslice it just edit the
4:56
exposure on the printer and then go
4:58
again or or if you get a fail print and
5:00
you know just a couple of tenths of a
5:02
second exposure time would fix it just
5:04
clean the bed change the settings and
5:06
print again and another unique feature
5:09
in the ultra menus is Wi-Fi because it's
5:11
only available on this Mars 4 model so
5:14
far and the antenna for Wi-Fi actually
5:16
connects up inside the printer under the
5:18
hood to get Wi-Fi working all you need
5:21
to do is use the UI to connect your
5:23
local network and so long as your PC is
5:25
on that same network when you slice your
5:27
models in chit box you'll see a network
5:29
send option and from here you can just
5:31
send the print to the printer and start
5:33
it remotely too no need to ever use that
5:35
USB drive again now one thing of note is
5:38
that elu has been pushing for Tango
5:40
that's the slicer and I'm not keen on
5:42
this slicer for one reason moving models
5:44
around the bill plate before slicing is
5:46
just so cumbersome so until they make
5:48
this most basic of functions easier I'm
5:51
not touching it so as mentioned I've
5:53
been using chitu box for all my slicing
5:55
but there is an issue I've found when I
5:57
print Miniatures even with 18 Micron
5:59
prints I'd still enable anti-aliasing on
6:02
them just to eradicate all the visible
6:04
voxal and layer lines but these printers
6:06
now use eligo proprietary. Goo format
6:09
and this is still new and is having some
6:11
teething issues for one when you enable
6:14
anti-aliasing the far size is absolutely
6:16
huge sometimes so large that the files
6:19
won't actually fit onto your USB drive
6:21
but the slicer won't warn you and you'll
6:23
end up printing a truncated file which
6:25
will just fail at a certain percentage
6:27
through and the other problem is that
6:30
well anti-aliasing just doesn't work at
6:32
least in the case of the satin printers
6:34
anyway but on the Mars 4S when I enabled
6:36
this it caused everything on the lcd's
6:38
horizontal axis to weirdly merge
6:41
supports and all of Parts just blended
6:43
into different parts of the models now
6:46
at least on the Saturns you could export
6:48
your slices in the CB format and resolve
6:51
both of these issues entirely with the
6:53
Mars though you're stuck with do goo
6:56
unless you send it wirelessly and it
6:58
uses CB as as default now look eligo
7:01
will remedy this and chances are it's
7:03
fixed before my video even goes live so
7:06
make sure you do the latest firmware
7:07
updates at least on the ultra that's as
7:09
easy as pressing the option in the menus
7:11
and it'll do it over the internet now
7:13
the final thing I want to talk about
7:14
before print quality is the screen
7:16
protector now I accidentally said in one
7:19
of my reviews that there is no screen
7:21
protector yet the elegu website says the
7:23
mar 4 comes with a plastic screen
7:24
protector and the ultra comes with a
7:26
tempered glass one but I can't see or
7:29
feeler screen protector on either
7:31
printer if there is one there then it's
7:33
under the tape around the LCD which
7:36
makes replacement tricky if not
7:38
impossible now both printers did come
7:40
with a sheet of plastic on the screen
7:42
that clearly said remove before print
7:44
but under those was nothing was this the
7:47
screen protector elu wrong about it or
7:50
have I just been unlucky with the QA
7:51
tester who checked both of these
7:53
printers and my satins if you've got one
7:56
of these or any of these and have got
7:57
similar findings please let me let me
7:59
know down in the comments cuz I'm
8:00
wondering if it's just me also while
8:02
you're looking at stuff below the video
8:03
if you are considering buying either of
8:05
these printers it would do us as solid
8:07
if you would just click our affiliate
8:09
links in the description before making a
8:11
purchase this cost you nothing but a
8:13
click and will'll make a commission but
8:15
more importantly it tells elu that our
8:17
videos are valuable to you it means they
8:19
keep sending us printers and we can do
8:21
more reviews for you in the future in
8:23
the case of this I was sent the ultra
8:25
and I bought the normal Mars myself just
8:27
to do some comparisons right quality now
8:31
both printers are great and if you watch
8:33
my Mars 4 Ultra review you may have
8:35
thought I was hating on that printer I
8:36
wasn't I said the printer's great but
8:38
ACF is a bad thing and whilst I'm saying
8:41
the printers are great I just can't say
8:43
amazing because in this generation we
8:46
simply haven't had the quality jump we
8:47
had when we went from say 4K to 8K and
8:50
even that wasn't that huge when we look
8:52
back now 2K to 4K was big but when we
8:55
look back between now and 2K it has
8:59
hasn't been that huge a jump prints have
9:01
been fine since then but the point is
9:05
we're now well beyond the point of
9:07
diminishing returns these are great they
9:10
just aren't going to wow anyone who's
9:12
had a last generation printer if you're
9:14
going from 2K to this then oh my God but
9:17
you'll get the same reaction if you went
9:18
from 2K to 4K or 2K to 8K so it is what
9:21
it is let's stop judging these around
9:23
quality it's great here but it's not
9:26
mindblowing and the thing is in order to
9:28
get the most Bo out of a super high
9:30
resolution printer like this you're
9:32
going to need a resin capable of
9:33
rendering that detail and all the ones
9:35
I've seen which are this sharp are very
9:37
brittle and by polling my own Community
9:41
I found that most people don't use those
9:43
resins by the odd few specialist cases
9:46
most people just use standard or more
9:48
durable resins so that the models they
9:50
print can actually survive basic
9:52
transportation and this is exactly why
9:54
we released wargamer because it's the
9:56
perfect balance of sharpness and
9:58
durability for Miniatures and you can
10:00
see how detailed it is and yet it's
10:02
still smooth where it needs to be and
10:03
models printed with this are just like
10:05
store-bought plastic models if not a bit
10:07
more durable and have the benefits of
10:09
being sharper because they're 3D printed
10:12
now when it comes to these printers you
10:13
need to know that the ultra uses a
10:15
different type of release film now
10:17
whilst I've seen no indication that the
10:19
ultra Z AIS motor is any faster this
10:22
film will allow the resin to release 30%
10:24
easier so you can up your print speed
10:27
settings just a tad but the drawback is
10:29
because this ACF film is frosted it will
10:32
diffuse the projected image on each
10:34
layer and that will soften the prints
10:37
now don't get me wrong these prints
10:38
aren't bad and this diffusion is another
10:40
element that reduces layer and voxel
10:42
lines but it's a very analog way to do
10:45
it I much prefer the accurate control
10:48
from using printer settings and enabling
10:51
anti-aliasing whilst keeping the print
10:52
as sharp as possible however I've now
10:55
had mixed results with ACF film on most
10:58
printers it does does soften the print
10:59
and shows some weird crazy cross-hatch
11:02
lines on the surface and voger has shown
11:04
this on his videos too just like Uncle
11:06
Jesse but for some reason I still don't
11:09
understand I just don't get this with
11:11
the satin 3 perhaps that's a different
11:13
brand of ACF or I just got lucky and
11:15
there's a bit of a lottery with the
11:16
material over how good it is when you
11:18
get it but in the case of the Mars 4
11:20
ultra the ACF did diffuse my prints and
11:24
leave a cross-hatching on every surface
11:27
however you can easily Swap this CCF
11:29
with the clear PFA film that you just
11:31
get on the normal Mars 4 and I know I
11:34
had complaints that I should have just
11:35
done this earlier by swapping the ACF
11:37
like Bogman did but I knew the Mars 4
11:40
was coming and if I'd done that I
11:42
wouldn't have then been able to do this
11:43
test where I used the ACF on the base
11:46
Mars 4 to now the good news is when you
11:48
use PFA on the ultra the prints are as
11:51
good as the Mars 4 if not slightly
11:53
better the ultra uses a fral lens which
11:56
directs lights upwards towards the build
11:58
plate without this you do get some LCD
12:01
blow difference wise if you squint and
12:04
turn your head and convince yourself a
12:06
little then the ultra is slightly better
12:08
than the Mars 4 when using PFA or is it
12:13
I don't know it's not enough that it
12:15
matters and similarly with the Mars 4
12:17
stick some ACF on this and it blurs the
12:19
print but you can lift faster so in
12:22
summary if you want the ultimate quality
12:25
from an entrylevel siiz printer both of
12:27
these are absolutely Ace but the Mars 4
12:30
ultra needs you to replace the ACF film
12:32
with PFA if you want to get that extra
12:34
quality most people have just opted to
12:36
buy a second vat and have one with PFA
12:39
and one with ACF so that they can choose
12:41
fast or detail depending on what they
12:43
want at the time but the ultra is still
12:45
well worth the small upgrade price to me
12:47
just for the ease of use that's Wi-Fi
12:49
and the more stable build plate leveling
12:52
mechanism and if you are looking at one
12:53
of these and your budget slightly bigger
12:56
don't discount the satin 3 range because
12:58
honestly the difference in print quality
13:00
from this compared to the Saturn 3s
13:02
which have the convenience of a bigger
13:03
blate I'd go for the Saturn 3 any day of
13:06
the week the difference there is nothing
13:10
I can't even tell even under a macro
13:12
lens I can't see it but anyway we're
13:14
talking about the marzes yeah the Mars 4
13:16
is worth it to me to go for the ultra is
13:19
it worth it to you well that's for you
13:21
to decide and whatever you go with that
13:23
is the best decision I can only show you
13:25
the door you have to walk through it
13:28
please click the like button if this
13:29
helped you and drop a comment below to
13:31
feed the YouTube algorithm so we can
13:33
help more people just by being seen I
13:35
want to say thanks for watching and
13:37
thanks to our members who got Early
13:38
Access to this video along with many
13:40
others and exclusive content too so
13:43
until next time hle of Easter babies
13:45
faux hammer
13:46
[Music]
13:57
out
